25V 10µF ±20% 29mA 1K Hours 1C series

Through Hole Standard Aluminum Electrolytic Capacitors, Radial Type, 1C series, 2 Pins, Capacitance: 10µF, Tolerance ±20%, Voltage 25V, Case size: Ø4.0*L7.0mm, Ripple Current 29mA Max. Load Life:1000 Hours, Sleeve: PET, Operating Temp. Range -40°C ~+105°C

Key Features:
  • Series: 1C
  • Capacitance: 10µF
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 25V
  • Ripple Current @+105°C, 100KHz: 29mA Max.
  • Lifetime @105°C: 1000 Hours
  • Surge Volt: 32V
See Full Specification

$0.07150

Out of stock
SKU 1C106M025HC7BA
Original MPNCBE106M1EHC1C07RR
Datasheet Data Sheet

Description

Through Hole Standard Aluminum Electrolytic Capacitors, Radial Type, 1C series, 2 Pins, Capacitance: 10µF, Tolerance ±20%, Voltage 25V, Case size: Ø4.0*L7.0mm, Ripple Current 29mA Max. Load Life:1000 Hours, Sleeve: PET, Operating Temp. Range -40°C ~+105°C

• Through Hole Standard Aluminum Electrolytic Capacitors, Radial Type
• 7mm Height Standard Product
• RoHS Complaint And Halogen Free
• Tape Package And Lead Cut 3.5~7.0mm Optional

APPLICATION

• For Standard Circuit Like Coupling Filter And Energy Storage Etc

Specification

Series

1C
Capacitance

10µF
Capacitance Tolerance

±20%
Rated Voltage

25V

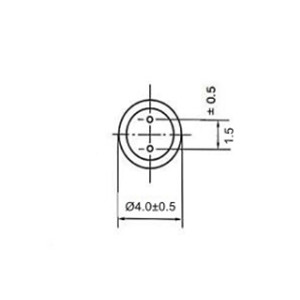

Case Size

Ø4.0*L7.0mm
Ripple Current @+105°C, 100KHz

29mA Max.
Lifetime @105°C

1000 Hours
Operating Temp. Range

-40°C ~+125°C
Dissipation Factor @+105°C, 100KHz

0.15 Tanδ Max.
Surge Volt

32V
Mounting Type

Dip type, 2 pins
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

1000pcs/Bag, Quantity entered must be multiple of 1000
NCNR

Non-Cancelable/Non-Returnable
