RES, SMD, 36KΩ, ±0.5%, 1/10W, 0603

High Precision Power Thin Film Chip Resistors, 0603 (1608 Metric), ARU03 Series, Dimension L1.55*W0.80*H0.45mm, 2 Terminations, Tolerance: ±0.5%, Resistance 36K ohm, Dissipation Max. 1/10W @ 70℃, Temperature Coefficient Rate (TCR) Max. ±25ppm/°C ,Operating Temp. Range -55°C ~+155°C

Key Features:
  • Series: 0603 (1608 Metric) Series
  • Dissipation: 1/10W Max.
  • Resistance Tolerance: ±0.5%

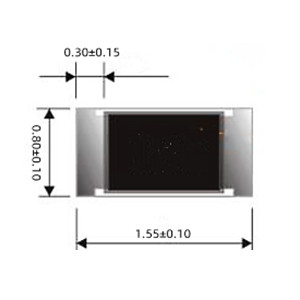

  • Case size: L1.55*W0.80*H0.45mm
  • Operation Voltage: 75V Max.
  • Temperature Coefficient Rate: ±25ppm/°C Max.
  • Resistance Range: 36K ohm
See Full Specification

$0.09960

Out of stock
SKU CRARU03DB36KS1
Original MPNARU03DB36K
Datasheet Data Sheet

Description

High Precision Power Thin Film Chip Resistors, 0603 (1608 Metric), ARU03 Series, Dimension L1.55*W0.80*H0.45mm, 2 Terminations, Tolerance: ±0.5%, Resistance 36K ohm, Dissipation Max. 1/10W @ 70℃, Temperature Coefficient Rate (TCR) Max. ±25ppm/°C ,Operating Temp. Range -55°C ~+155°C

• SMD metal film resistor
• High reliability and stability of 0.5% and below per customer request
• High performance of TCR: 25 ppm/°C and below per customer request
• Low current noise
• RoHS compliant and lead free

APPLICATION

• Medical equipment
• Measuring instrument
• Communication device
• Computer / Printer

Specification

Series

0603 (1608 Metric) Series
Dissipation

1/10W Max.
Resistance Tolerance

±0.5%
Case size

L1.55*W0.80*H0.45mm
Operation Voltage

75V Max.
Overload Voltage

150V Max.
Temperature Coefficient Rate

±25ppm/°C Max.
Resistance Range

36K ohm
Operating Temp. Range

-55°C ~+155°C
Mounting Type

SMD type, 2 Pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

5000pcs/Reel, Quantity entered must be multiple of 5000
NCNR

Non-Cancelable/Non-Returnable
