RES, SMD, 1.37KΩ, ±1%, 1/4W, 1206

Thick Film Chip Resistors, 1206(3216 Metric), CR06 Series, Dimension L3.10*W1.60*H0.60mm, 2 Terminations ,Tolerance: ±1%, Resistance 1.37kohm, Dissipation Max. 1/4W @ 70℃ ,Temperature Coefficient Rate (TCR) Max. ±100ppm/°C ,Operating Temp. Range -55°C ~+155°C

Key Features:
  • Series: 1206 (3216 Metric) Series
  • Dissipation: 1/4W Max.
  • Resistance Tolerance: ±1%

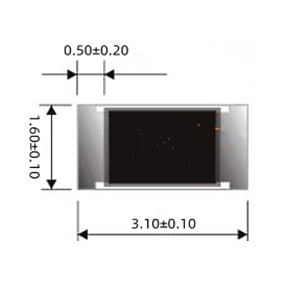

  • Case size: L3.10*W1.60*H0.60mm
  • Operation Voltage: 200V Max.
  • Temperature Coefficient Rate: ±100ppm/°C Max.
  • Resistance Range: 1.37K ohm
See Full Specification

$0.03144

Out of stock
SKU CR1206FB1K37S1
Original MPNCR06FB1K37
Datasheet Data Sheet

Description

Thick Film Chip Resistors, 1206(3216 Metric), CR06 Series, Dimension L3.10*W1.60*H0.60mm, 2 Terminations ,Tolerance: ±1%, Resistance 1.37kohm, Dissipation Max. 1/4W @ 70℃ ,Temperature Coefficient Rate (TCR) Max. ±100ppm/°C ,Operating Temp. Range -55°C ~+155°C

• High Reliability And Stability
• Reduced Size Of Final Equipment
• Lower Assembly Costs
• Higher Component And Equipment Reliability
• RoHS III Compliant And Halogen Free Products

APPLICATION

• Consumer Electrical Equipment
• EDP, Computer Application
• Telecom Application

Specification

Series

1206 (3216 Metric) Series
Dissipation

1/4W Max.
Resistance Tolerance

±1%
Case size

L3.10*W1.60*H0.60mm
Operation Voltage

200V Max.
Overload Voltage

400V Max.
Temperature Coefficient Rate

±100ppm/°C Max.
Resistance Range

1.37K ohm
Operating Temp. Range

-55°C ~+155°C
Mounting Type

SMD type, 2 Pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

5000pcs/Reel, Quantity entered must be multiple of 5000
NCNR

Non-Cancelable/Non-Returnable
