RES, SMD, 0.82Ω, ±1%, 2/3W, 1210

Thick Film Low Ohm Chip Resistors (High power rating and low TCR ), 1210 (3225 Metric), CL10 Series, Dimension L3.10*W2.60*H0.60mm, 2 Terminations, Tolerance: ±1.0%, Resistance 0.82 ohm, Dissipation Max. 2/3W @ 70℃, Temperature Coefficient Rate (TCR) Max. ±100ppm/°C ,Operating Temp. Range -55°C ~+155°C

Key Features:
  • Series: 1210 (3225 Metric) Series
  • Dissipation: 2/3W Max.
  • Resistance Tolerance: ±1%

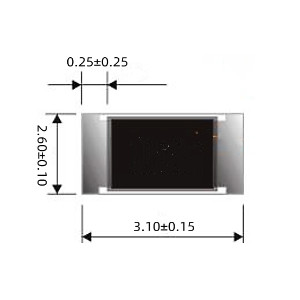

  • Case size: L3.10*W2.60*H0.60mm
  • Temperature Coefficient Rate: ±100ppm/°C Max.
  • Resistance Range: 0.82 ohm
  • Operating Temp. Range: -55°C ~+155°C
See Full Specification

$0.11040

Out of stock
SKU CRCL10FBR82S01
Original MPNCL10FBR82
Datasheet Data Sheet

Description

Thick Film Low Ohm Chip Resistors (High power rating and low TCR ), 1210 (3225 Metric), CL10 Series, Dimension L3.10*W2.60*H0.60mm, 2 Terminations, Tolerance: ±1.0%, Resistance 0.82 ohm, Dissipation Max. 2/3W @ 70℃, Temperature Coefficient Rate (TCR) Max. ±100ppm/°C ,Operating Temp. Range -55°C ~+155°C

• High power rating and low TCR
• High reliability and stability
• Reduced size of final equipment
• RoHS exemption free and Lead free products

APPLICATION

• Power supply / Battery Pack
• Battery charger/ PC
• DC-DC power converter

Specification

Series

1210 (3225 Metric) Series
Dissipation

2/3W Max.
Resistance Tolerance

±1%
Case size

L3.10*W2.60*H0.60mm
Temperature Coefficient Rate

±100ppm/°C Max.
Resistance Range

0.82 ohm
Operating Temp. Range

-55°C ~+155°C
Mounting Type

SMD type, 2 Pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

5000pcs/Reel, Quantity entered must be multiple of 5000
NCNR

Non-Cancelable/Non-Returnable
