63V 150µF ±20% 15 mohm Max. 3500mA 4K hours AEC-Q200 BZ Series

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors BZ series, Capacitance: 150µF, Tolerance ±20%, Voltage 63V, 2 pads, Case size: ØD10*L16.5mm, Ripple Current 3500mA Max.@+125℃, 100KHz, Lifetime 4000Hours @125°C, ESR @125°C,100KHz: 15 mohm Max., Operating Temp. Range -55°C ~+125°C, Leakage Current: 94.5μA @at 20℃ after 2 minutes

Key Features:
  • Series: BZ
  • Capacitance: 150µF
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 63V
  • Impedance @20℃,100KHz: 15mohm Max.
  • Lifetime @125°C: 4000 Hours
  • Rating: AEC-Q200
See Full Specification

$8.25000

Out of stock
SKU BZ157M063HGOTA
Original MPNCXE157M1JHBZGP5TR
Datasheet Data Sheet

Description

Conductive Polymer Hybrid Aluminum Electrolytic Capacitors BZ series, Capacitance: 150µF, Tolerance ±20%, Voltage 63V, 2 pads, Case size: ØD10*L16.5mm, Ripple Current 3500mA Max.@+125℃, 100KHz, Lifetime 4000Hours @125°C, ESR @125°C,100KHz: 15 mohm Max., Operating Temp. Range -55°C ~+125°C, Leakage Current: 94.5μA @at 20℃ after 2 minutes

  • Conductive Polymer Hybrid Aluminum Electrolytic Capacitors
  • High Stability And Reliability, Low ESR, High Ripple Current
  • Long Life 4000 Hours @ 125°C
  • Quality and standard Meets IEC 60384-4 and AEC-Q200-REV D
  • Applicable To Automatic Mounting Machine
  • Cross Competitors PARTS GYA, HZC, ZC And HXC Series And More.
  • RoHS III Complaint And Halogen Free

APPLICATION

  • For Applications Automotive and more

Specification

Series

BZ
Capacitance

150µF
Capacitance Tolerance

±20%
Rated Voltage

63V
Case Size

ØD10.00*L16.5mm
Impedance @20℃,100KHz

15mohm Max.
Ripple Current @+125°C, 100KHz

3500mA Max.
Lifetime @125°C

4000 Hours
Operating Temp. Range

-55°C ~+125°C
Dissipation Factor @+20°C, 120KHz

8.0 Tanδ Max.
Leakage Current (μA/2min) µA Max

94.5μA
Mounting Type

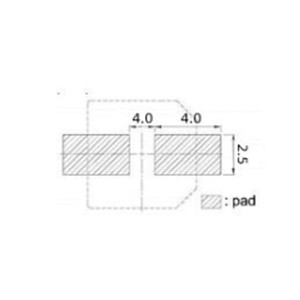

Surface Mount, 2 pads
Rating

AEC-Q200
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

300pcs/Reel, Quantity entered must be multiple of 300
NCNR

Non-Cancelable/Non-Returnable
