Name: 630V 0.047µF X7R, ±10%, 1210 Series
SKU: 1210B473K631GB
Price: 1.91 USD
Availability: OutOfStock

Welcome to Aillen Capacitors !

Hello, Log In My Account

0 Shopping Cart $0.00000

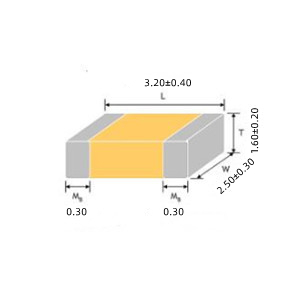

MILCC-M1210series-dimension-GB-300x300-Q0921

Multilayer Ceramic Chip Capacitors, Medium Voltage 1210 (3225 Metric) Series, L3.20*W2.50mm,Thickness: 1.80mm Max., Dielectric X7R, Capacitance 0.047µF, Tolerance ±10%, Rated Voltage 630V, Operating Temp. Range -55°C ~+125°C

Key Features:

Series: 1210 Series
Capacitance: 0.047µF
Capacitance Tolerance: ±10%
Case size: L3.20*W2.50*H1.60mm
Rated Voltage: 630V
Dielectric: X7R
Capacitance Characteristic: ±15%

See Full Specification

$1.90848

Out of stock

SKU	1210B473K631GB

Original MPN	1210B473K631GB
Datasheet	Data Sheet

Description
Specification

Description

• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• High Capacitance in small size
• Capacitor with lead-free termination (pure Tin)

APPLICATION

• General Digital Circuit
• Power Supply by pass capacitors
• Consumer Electronics
• Telecommunication

Specification

Series	1210 Series
Capacitance	0.047µF
Capacitance Tolerance	±10%
Case size	L3.20W2.50H1.60mm
Rated Voltage	630V
Dielectric	X7R
Capacitance Characteristic	±15%
Operating Temp. Range	-55°C ~+125°C
Thickness	1.60±0.20mm
Mounting Type	SMD type, 2 Pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	2000pcs/Reel, Quantity entered must be multiple of 2000
NCNR	Non-Cancelable/Non-Returnable
