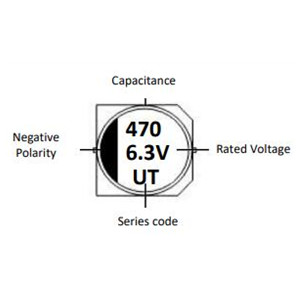

6.3V 470µF ±20% 320mA 2K Hours UT Series

SMD Aluminum Electrolytic Capacitors, Wide Temperature Standard Type, UT series, 2 pads Capacitance: 470µF, Tolerance ±20%, Voltage 6.3V, Case size: ØD8.00*L10.2mm, Ripple Current 320mA Max.@+105℃, 120Hz, Lifetime 2000Hours @105°C, Operating Temp. Range -55°C ~+105°C

Key Features:
  • Series: UT
  • Capacitance: 470µF
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 6.3V
  • Ripple Current @+105°C, 120Hz: 320mA Max.
  • Lifetime @105°C: 2000 Hours
  • Leakage Current @20 °C: 29.61µA Max.
See Full Specification

$0.35500

SKU UT477M6V3HFKTA
Original MPNCAE477M0JHUTFJ2TR
Datasheet Data Sheet
Add to wishlist

Description

SMD Aluminum Electrolytic Capacitors, Wide Temperature Standard Type, UT series, 2 pads Capacitance: 470µF, Tolerance ±20%, Voltage 6.3V, Case size: ØD8.00*L10.2mm, Ripple Current 320mA Max.@+105℃, 120Hz, Lifetime 2000Hours @105°C, Operating Temp. Range -55°C ~+105°C

• Polar Aluminum Electrolytic Capacitor (Foil Type)
• High stability and reliability
• Lifetime 2000 Hours @ 105°C
• Designed Capacitor’s Quality Meets IEC60384.
• Applicable To Automatic Mounting Machine
• Cross Competitors Parts FN, FKS, MVE UUT SKV, SGV Series and more.
• RoHS Complaint And Halogen Free

APPLICATION

• High-density Patch Assembly General Electronic Circuit Etc.

Specification

Series

UT
Capacitance

470µF
Capacitance Tolerance

±20%
Rated Voltage

6.3V
Case Size

ØD8.00*L10.2mm
Ripple Current @+105°C, 120Hz

320mA Max.
Lifetime @105°C

2000 Hours
Operating Temp. Range

-55°C ~+105°C
Dissipation Factor @+20°C, 120Hz

0.30 Tanδ Max.
Leakage Current @20 °C

29.61µA Max.
Mounting Type

Surface Mount, 2 pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

500pcs/Reel, Quantity entered must be multiple of 500
NCNR

Non-Cancelable/Non-Returnable
