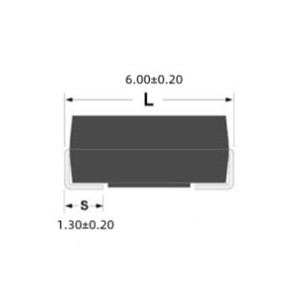

SMD Conductive Polymer Tantalum Capacitors, EIA code 6032-28, CA55 Series, Case C, L6.00*W3.20*H2.80mm, Rated Voltage 6.3 Vdc, Capacitance 330μF, Tolerance ±20%, ESR 100 mΩ Max., Operating Temp. Range -55°C ~+125°C.
SMD Conductive Polymer Tantalum Capacitors, EIA code 6032-28, CA55 Series, Case C, L6.00*W3.20*H2.80mm, Rated Voltage 6.3 Vdc, Capacitance 330μF, Tolerance ±20%, ESR 100 mΩ Max., Operating Temp. Range -55°C ~+125°C.
• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• Small volume, High Stability
• Good Frequency Characteristic
APPLICATION
• For Surface Mount Consumer Electronic Equipment
• Color TV sets, PC, Mobile Telephone sets Pickup camera Radar etc
SMD Conductive Polymer Tantalum Capacitors EIA code 3528-21, CA55 Series, Case B, L3.50*W2.80*H2.10mm, Rated voltage 10Vdc, Capacitance 100μF, Tolerance ±20%, ESR 300 mΩ Max., Operating Temp. Range -55°C ~+125°C.
SMD Conductive Polymer Tantalum Capacitors, EIA code 3528-21, CA55 Series, Case B, L3.50*W2.80*H2.10mm, Rated voltage 16Vdc, Capacitance 33μF, Tolerance ±20%, ESR 200 mΩ Max., Operating Temp. Range -55°C ~+125°C.
SMD Conductive Polymer Tantalum Capacitors, EIA code 6032-28, CA55 Series, Case C, L6.00*W3.20*H2.80mm, Rated Voltage 10 Vdc, Capacitance 330μF, Tolerance ±20%, ESR 100 mΩ Max., Operating Temp. Range -55°C ~+125°C.
SMD Conductive Polymer Tantalum Capacitors, EIA code 6032-28, CA55 Series, Case C, L6.00*W3.20*H2.80mm, Rated Voltage 50 Vdc, Capacitance 3.3 μF, Tolerance ±20%, ESR 80 mΩ Max., Operating Temp. Range -55°C ~+125°C.
SMD Conductive Polymer Tantalum Capacitors, EIA code 6032-28, CA55 Series, Case C, L6.00*W3.20*H2.80mm, Rated Voltage 6.3 Vdc, Capacitance 220μF, Tolerance ±20%, ESR 100 mΩ Max., Operating Temp. Range -55°C ~+125°C.
