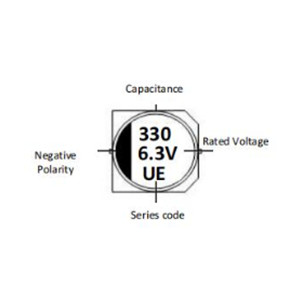

Name: 6.3V 330µF ±20% 0.85ohm 150mA 2K Hours UE Series
SKU: UE337M6V3HEJTA
Price: 0.24 USD
Availability: OutOfStock

Welcome to Aillen Capacitors !

SMD Aluminum Electrolytic Capacitors, Low Impedance and ESR type, UE series, 2 pads Capacitance: 330µF, Tolerance ±20%, Voltage 6.3V,, Case size: ØD6.3*L7.70mm, Impedance 0.85 Ohm. Ripple Current: 150mA, Max. @+105℃, 100KHz Lifetime 2000Hours @105°C, Operating Temp. Range -55°C ~+105°C

Key Features:

Series: UE
Capacitance: 330µF
Capacitance Tolerance: ±20%
Rated Voltage: 6.3V
Ripple Current @+105°C, 100KHz: 150mA Max.
Lifetime @105°C: 2000 Hours
Leakage Current: 20.8 (μA)max
Impedance @20℃,100KHz: 0.85ohm Max.

See Full Specification

$0.23500

Out of stock

SKU	UE337M6V3HEJTA

Original MPN	CAE337M0JHUEEG7TRC
Datasheet	Data Sheet

Description
Specification

Description

Polar Aluminum Electrolytic Capacitor (Foil Type)
High stability and reliability
Lifetime 2000 Hours @ 105°C
Designed Capacitor’s Quality Meets IEC60384.
Applicable To Automatic Mounting Machine
Cross Competitors Parts and more.
RoHS Complaint And Halogen Free

APPLICATION

High-density Patch Assembly General Electronic Circuit Etc.

Specification

Series	UE
Capacitance	330µF
Capacitance Tolerance	±20%
Rated Voltage	6.3V
Case Size	Ø6.30*L7.70mm
Ripple Current @+105°C, 100KHz	150mA Max.
Lifetime @105°C	2000 Hours
Operating Temp. Range	-55°C ~+105°C
Dissipation Factor @+20°C, 120Hz Tanδ Max.	0.26 Tanδ Max.
Leakage Current	20.8 (μA)max
Impedance @20℃,100KHz	0.85ohm Max.
Mounting Type	Surface Mount, 2 pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	1000pcs/Reel, Quantity entered must be multiple of 1000
NCNR	Non-Cancelable/Non-Returnable
