Name: 6.3V 1000µF ±20% 0.23ohm 360mA 2K Hours UE Series
SKU: UE108M6V3HGKTA
Price: 0.59 USD
Availability: OutOfStock

Welcome to Aillen Capacitors !

Hello, Log In My Account

0 Shopping Cart $0.00000

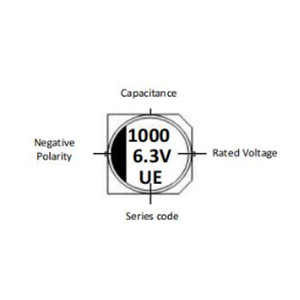

SMD Aluminum Electrolytic Capacitors, Low Impedance and ESR type, UE series, 2 pads Capacitance: 1000µF, Tolerance ±20%, Voltage 6.3V, Case size: ØD10.0*L10.20mm, Impedance 0.23 Ohm. Ripple Current: 360mA Max. @+105℃, 100KHz, Lifetime 2000Hours @105°C, Operating Temp. Range -55°C ~+105°C

Key Features:

Series: UE
Capacitance: 1000µF
Capacitance Tolerance: ±20%
Rated Voltage: 6.3V
Ripple Current @+105°C, 100KHz: 360mA Max.
Lifetime @105°C: 2000 Hours
Leakage Current: 63 (μA)max
Impedance @20℃,100KHz: 0.23ohm Max.

See Full Specification

$0.58500

Out of stock

SKU	UE108M6V3HGKTA

Original MPN	CAE108M0JHUEGJ2TR
Datasheet	Data Sheet

Description
Specification

Description

Polar Aluminum Electrolytic Capacitor (Foil Type)
High stability and reliability
Lifetime 2000 Hours @ 105°C
Designed Capacitor’s Quality Meets IEC60384.
Applicable To Automatic Mounting Machine
Cross Competitors Parts and more.
RoHS Complaint And Halogen Free

APPLICATION

High-density Patch Assembly General Electronic Circuit Etc

Specification

Series	UE
Capacitance	1000µF
Capacitance Tolerance	±20%
Rated Voltage	6.3V
Case Size	ØD10.0*L10.2mm
Ripple Current @+105°C, 100KHz	360mA Max.
Lifetime @105°C	2000 Hours
Operating Temp. Range	-55°C ~+105°C
Dissipation Factor @+20°C, 120Hz Tanδ Max.	0.26 Tanδ Max.
Leakage Current	63 (μA)max
Impedance @20℃,100KHz	0.23ohm Max.
Mounting Type	Surface Mount, 2 pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	500pcs/Reel, Quantity entered must be multiple of 500
NCNR	Non-Cancelable/Non-Returnable
