Multilayer Ceramic Chip Capacitors 0603 (1608 Metric) Series, L1.60*W0.80*H0.80mm, Thickness: 1.00mm Max., Dielectric X5R, Capacitance 2.2µF, Tolerance ±10%, Rated Voltage 50V, Operating Temp. Range -55°C ~+85°C
• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• High Capacitance in small size
• Small L1.60*W0.80*H0.80mm, 2 Pads
APPLICATION
• General Digital Circuit
• Power Supply by pass capacitors
• Consumer Electronics
• Telecommunication
| Series | 0603 Series |
|---|---|
| Capacitance | 2.2µF |
| Capacitance Tolerance | ±10% |

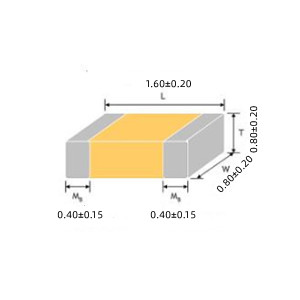

| Case size | L1.60*W0.80*H0.80mm |
| Rated Voltage | 50V |
| Dielectric | X5R |
| Thickness | 0.80±0.20mm |
| Capacitance Characteristic | ±15% |
| Operating Temp. Range | -55 ~+85°C |
| Mounting Type | SMD type, 2 Pads |
| RoHS Status | RoHS III Compliant & Halogen Free |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| HTSUS | 8532.22.0020 |
| ECCN | EAR99 |
| Standard Package (MPQ) | 4000pcs/Reel, Quantity entered must be multiple of 4000 |
| NCNR | Non-Cancelable/Non-Returnable |
