500V 0.033µF X7R, ±10%, 1206 Series

Multilayer Ceramic Chip Capacitors, Medium Voltage 1206 (3216 Metric) Series, L3.20mm*W1.60mm,Thickness: 1.80mm Max., Dielectric X7R, Capacitance 0.033µF, Tolerance ±10%, Rated Voltage 500V, Operating Temp. Range -55°C ~+125°C

Key Features:
  • Series: 1206 Series
  • Capacitance: 0.033µF
  • Capacitance Tolerance: ±10%

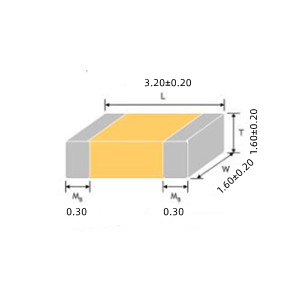

  • Case size: L3.20*W1.60*H1.60mm
  • Rated Voltage: 500V
  • Dielectric: X7R
  • Capacitance Characteristic: ±15%
See Full Specification

$0.72240

Out of stock
SKU 1206B333K501GB
Original MPN1206B333K501GB
Datasheet Data Sheet

Description

Multilayer Ceramic Chip Capacitors, Medium Voltage 1206 (3216 Metric) Series, L3.20mm*W1.60mm,Thickness: 1.80mm Max., Dielectric X7R, Capacitance 0.033µF, Tolerance ±10%, Rated Voltage 500V, Operating Temp. Range -55°C ~+125°C

• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• High Capacitance in small size
• Capacitor with lead-free termination (pure Tin)

APPLICATION

• DC to DC converter.
• High voltage coupling/DC blocking
• Back-lighting inverters
• LAN/WLAN interface
• Modem/Power supplies

Specification

Series

1206 Series
Capacitance

0.033µF
Capacitance Tolerance

±10%
Case size

L3.20*W1.60*H1.60mm
Rated Voltage

500V
Dielectric

X7R
Capacitance Characteristic

±15%
Operating Temp. Range

-55°C ~+125°C
Thickness

1.60±0.20mm
Mounting Type

SMD type, 2 Pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

2000pcs/Reel, Quantity entered must be multiple of 2000
NCNR

Non-Cancelable/Non-Returnable
