Name: 35V 47µF ±20% 0.44 ohm Max. 230mA 2K hours FZ Series
SKU: FZ476M035HFITA
Price: 0.59 USD
Availability: OutOfStock

Welcome to Aillen Capacitors !

Hello, Log In My Account

0 Shopping Cart $0.00000

SMD Aluminum Electrolytic Capacitors, FZ series, 2 pads, Capacitance: 47µF, Tolerance ±20%, Voltage 35V, Case size: ØD8.0*L6.5mm, Ripple Current 230 mA Max. @+105℃, 100KHz, Lifetime 2000Hours @105°C, ESR @20°C,100KHz: 0.44 ohm Max., Operating Temp. Range -55°C ~+105°C. Surge Voltage: 40V, Leakage Current: 16.45μA @at 20℃ after 2 minutes

Key Features:

Series: FZ
Capacitance: 47µF
Capacitance Tolerance: ±20%
Rated Voltage: 35V
Impedance @20℃,100KHz: 0.44 ohm Max.
Ripple Current @+105°C, 100KHz: 230mA Max.
Lifetime @125°C: 2000 Hours

See Full Specification

$0.58500

Out of stock

SKU	FZ476M035HFITA

Original MPN	CAE476M1VHFZFF5TR
Datasheet	Data Sheet

Description
Specification

Description

• Polar Aluminum Electrolytic Capacitor (Foil Type)
• High stability and reliability
• Lifetime 2000 Hours @ 105°C
• Designed Capacitor’s Quality Meets IEC60384.
• Applicable To Automatic Mounting Machine
• Cross Competitors Parts
• RoHS Complaint And Halogen Free

APPLICATION

• High-density Patch Assembly General Electronic Circuit Etc.

Specification

Series	FZ
Capacitance	47µF
Capacitance Tolerance	±20%
Rated Voltage	35V

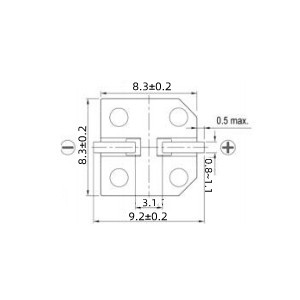

Case Size	Ø8.00*L6.50mm
Impedance @20℃,100KHz	0.44 ohm Max.
Ripple Current @+105°C, 100KHz	230mA Max.
Ripple Current @+85°C, 120Hz	241mA Max.
Lifetime @125°C	2000 Hours
Operating Temp. Range	-55°C ~+105°C
Dissipation Factor @+20°C, 120KHz	0.14 Tanδ Max.
Leakage Current @20 °C µA Max	16.45μA
Surge Voltage	40V

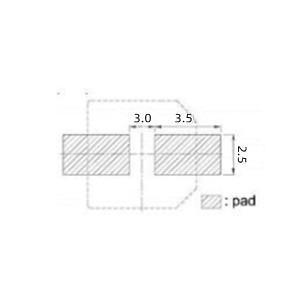

Mounting Type	Surface Mount, 2 pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	1000pcs/Reel, Quantity entered must be multiple of 1000
NCNR	Non-Cancelable/Non-Returnable
