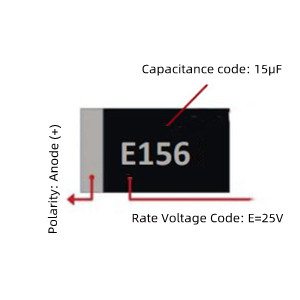

25V, 15μF, ±20%, 250mΩ Max. Polymer Case B

SMD Conductive Polymer Tantalum Capacitors,  EIA code 3528-21, CA55 Series, Case B, L3.50*W2.80*H2.10mm, Rated voltage 25Vdc, Capacitance 15μF, Tolerance ±20%, ESR 250 mΩ Max., Operating Temp. Range -55°C ~+125°C.

Key Features:
  • Series: CA55 Series, Case B
  • Capacitance: 15uF
  • Capacitance Tolerance: ±20%
  • Case Size: L3.50*W2.80*H2.10mm
  • Rated Voltage: 25V
  • ESR: 250 mΩ Max
  • Operating Temperature Range: -55°C ~+125°C
See Full Specification

$0.48500

1247 in stock
SKU CA55B025K156TA
Original MPNCA55-B025M156T
Datasheet Data Sheet
Add to wishlist

Description

SMD Conductive Polymer Tantalum Capacitors,  EIA code 3528-21, CA55 Series, Case B, L3.50*W2.80*H2.10mm, Rated voltage 25Vdc, Capacitance 15μF, Tolerance ±20%, ESR 250 mΩ Max., Operating Temp. Range -55°C ~+125°C.

• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• Small volume, High Stability
• Low ESR Value
• Good Frequency Characteristic

APPLICATION

• For Surface Mount Consumer Electronic Equipment
• Color TV sets, PC, Mobile Telephone sets Pickup camera Radar etc



Specification

Series

CA55 Series, Case B
Capacitance

15uF
Capacitance Tolerance

±20%
Case Size

L3.50*W2.80*H2.10mm
Rated Voltage

25V
Dissipation Factor

8.0% tgδ Max.
ESR

250 mΩ Max
Operating Temperature Range

-55°C ~+125°C
Mounting Type

SMD type, 2 Pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

2000pcs/reel, Quantity entered must be multiple of 2000
NCNR

Non-Cancelable/Non-Returnable
