Multilayer Ceramic Chip Capacitors, Medium Voltage 0805 (2012 Metric) Series, L2.00mm*W1.25mm,Thickness: 1.00mm Max., Dielectric X7R, Capacitance 220pF, Tolerance ±10%, Rated Voltage 250V, Operating Temp. Range -55°C ~+125°C
• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• High Capacitance in small size
• Small size L2.00*W1.25*H0.85mm, 2 Pads
APPLICATION
• General Digital Circuit
• Power Supply by pass capacitors
• Consumer Electronics
• Telecommunication
| Series | 0805 Series |
|---|---|
| Capacitance | 220pF |
| Capacitance Tolerance | ±10% |

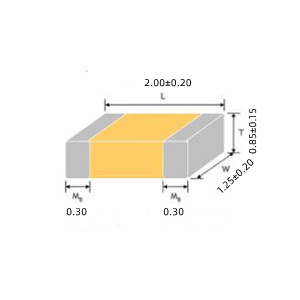

| Case size | L2.00*W1.25*H0.85mm |
| Rated Voltage | 250V |
| Dielectric | X7R |
| Capacitance Characteristic | ±15% |
| Thickness | 0.85±0.15mm |
| Operating Temp. Range | -55°C ~+125°C |
| Mounting Type | SMD type, 2 Pads |
| RoHS Status | RoHS III Compliant & Halogen Free |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| HTSUS | 8532.22.0020 |
| ECCN | EAR99 |
| Standard Package (MPQ) | 4000pcs/Reel, Quantity entered must be multiple of 4000 |
| NCNR | Non-Cancelable/Non-Returnable |
