250V 1500pF X7R, ±10%, SH05 Series

Multilayer Ceramic Chip Capacitors SH0805 (2012 Metric) Series, L2.00*W1.25*H1.25mm, Thickness: 1.35mm Max., Dielectric X7R, Capacitance 1500pF, Tolerance ±10%, Rated Voltage 250V, Operating Temp. Range -55°C ~+125°C

Key Features:
  • Series: SH05 Series
  • Capacitance: 1500pF
  • Capacitance Tolerance: ±10%

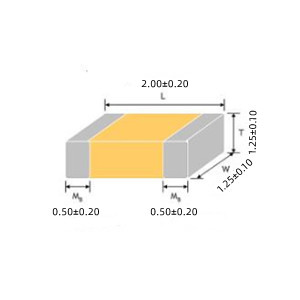

  • Case size: L2.00*W1.25*H1.25mm
  • Rated Voltage: 250V
  • Dielectric: X7R
  • Thickness: 1.25±0.10mm
See Full Specification

$0.18832

Out of stock
SKU SH05B152K251DC
Original MPNSH05B152K251DC
Datasheet Data Sheet

Description

Multilayer Ceramic Chip Capacitors SH0805 (2012 Metric) Series, L2.00*W1.25*H1.25mm, Thickness: 1.35mm Max., Dielectric X7R, Capacitance 1500pF, Tolerance ±10%, Rated Voltage 250V, Operating Temp. Range -55°C ~+125°C

• RoHS III Compliant
• MLCC’s termination are with a soft & flexible polymer layer to withstand high bending stress in SMT line
• Available for any item in standard series range.

APPLICATION

• Automotive industry.
• Power supply and related industries.
• Lighting industry.
• The other mechanical stress concerned products.

Specification

Series

SH05 Series
Capacitance

1500pF
Capacitance Tolerance

±10%
Case size

L2.00*W1.25*H1.25mm
Rated Voltage

250V
Dielectric

X7R
Thickness

1.25±0.10mm
Operating Temp. Range

-55 ~+125°C
Mounting Type

SMD type, 2 Pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

3000pcs/Reel, Quantity entered must be multiple of 3000
NCNR

Non-Cancelable/Non-Returnable
