Multilayer Ceramic Chip Capacitors 1210 (3225 Metric) Series, L3.20*W2.50*H2.00mm, Thickness: 2.20mm Max., Dielectric Y5V, Capacitance 47µF, Tolerance -20/+80%, Rated Voltage 10V, Operating Temp. Range -25°C ~+85°C
• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• High Capacitance in small size
• Capacitor with lead-free termination (pure Tin)
APPLICATION
• General Digital Circuit
• Power Supply by pass capacitors
• Consumer Electronics
• Telecommunication
| Series | 1210 Series |
|---|---|
| Capacitance | 47µF |
| Capacitance Tolerance | -20/+80% |

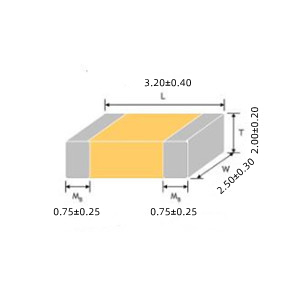

| Case size | L3.20*W2.50*H2.00mm |
| Rated Voltage | 10V |
| Dielectric | Y5V |
| Capacitance Characteristic | +30/-80% |
| Operating Temp. Range | -25 ~+85°C |
| Thickness | 2.00±0.20mm |
| Mounting Type | SMD type, 2 Pads |
| RoHS Status | RoHS III Compliant & Halogen Free |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| HTSUS | 8532.22.0020 |
| ECCN | EAR99 |
| Standard Package (MPQ) | 1000pcs/Reel, Quantity entered must be multiple of 1000 |
| NCNR | Non-Cancelable/Non-Returnable |
