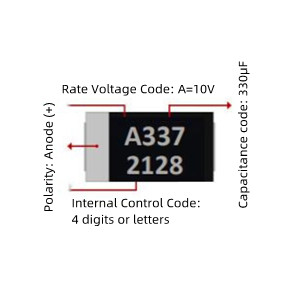

SMD Conductive Polymer Tantalum Capacitors, EIA code 6032-28, CA55 Series, Case C, L6.00*W3.20*H2.80mm, Rated Voltage 10 Vdc, Capacitance 330μF, Tolerance ±20%, ESR 100 mΩ Max., Operating Temp. Range -55°C ~+125°C.
SMD Conductive Polymer Tantalum Capacitors, EIA code 6032-28, CA55 Series, Case C, L6.00*W3.20*H2.80mm, Rated Voltage 10 Vdc, Capacitance 330μF, Tolerance ±20%, ESR 100 mΩ Max., Operating Temp. Range -55°C ~+125°C.
• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• Small volume, High Stability
• Good Frequency Characteristic
APPLICATION
• For Surface Mount Consumer Electronic Equipment
• Color TV sets, PC, Mobile Telephone sets Pickup camera Radar etc
| Series | CA55 Series, Case C |
|---|---|
| Capacitance | 330uF |
| Capacitance Tolerance | ±20% |
| Case Size | L6.00*W3.20*H2.80mm |
| Rated Voltage | 10V |
| Dissipation Factor | 10.0% tgδ Max. |
| ESR | 100 mΩ Max |
| Operating Temperature Range | -55°C ~+125°C |
| Mounting Type | SMD type, 2 Pads |
| RoHS Status | RoHS III Compliant & Halogen Free |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| HTSUS | 8532.22.0020 |
| ECCN | EAR99 |
| Standard Package (MPQ) | 500pcs/reel, Quantity entered must be multiple of 500 |
| NCNR | Non-Cancelable/Non-Returnable |
