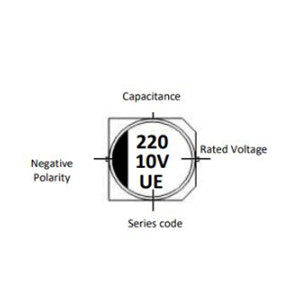

10V 220µF ±20% 0.85ohm 240mA 2K Hours UE Series

SMD Aluminum Electrolytic Capacitors, Low ESR/Impedance type UE series, 2 pads Capacitance: 220µF, Tolerance ±20%, Voltage 10V, Case size: ØD6.3*L7.70mm, Impedance 0.85Ω, Ripple Current: 240mA Max. @+105℃, 100KHz, Lifetime 2000Hours @105°C, Operating Temp. Range -55°C ~+105°C

Key Features:
  • Series: UE
  • Capacitance: 220µF
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 10V
  • Ripple Current @+105°C, 100KHz: 240mA Max.
  • Lifetime @105°C: 2000 Hours
  • Leakage Current: 22 (μA)max
  • Impedance @20℃,100KHz: 0.85ohm Max.
See Full Specification

$0.15500

Out of stock
SKU UE227M010HEJTA
Original MPNCAE227M1AHUEEG7TRC
Datasheet Data Sheet

Description

SMD Aluminum Electrolytic Capacitors, Low ESR/Impedance type UE series, 2 pads Capacitance: 220µF, Tolerance ±20%, Voltage 10V, Case size: ØD6.3*L7.70mm, Impedance 0.85Ω, Ripple Current: 240mA Max. @+105℃, 100KHz, Lifetime 2000Hours @105°C, Operating Temp. Range -55°C ~+105°C

• SMD Aluminum Electrolytic Capacitors
• Wide Temperature
• Low Impedance & ESR
• Designed For SMD On PCB
• Applicable To Automatic Mounting Machine
• RoHS Complaint And Halogen Free

APPLICATION

• High-density Patch Assembly Electronic Circuit, Power Supply, Lighting, Etc.
