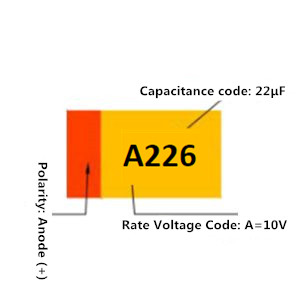

10V 22μF, ±10%, 3.2ohm Max. Case A CA45A series

SMD Standard Tantalum Capacitors Industrial Grade MnO₂, CA45 Series, EIA code 3216-16 (1206), Case A, L3.20*W1.60*H1.60mm, Rated voltage 10 Vdc, Capacitance 22μF, Tolerance ±10%, ESR 3.2Ω Max. Operating Temp. Range -55°C ~+125°C

Key Features:
  • Series: CA45 Series Case A
  • Capacitance: 22µF
  • Capacitance Tolerance: ±10%
  • Rated Voltage: 10V
  • Case Size: L3.20*W1.60*H1.60mm
  • ESR: 3.2ohm Max.
  • Operating Temp. Range: -55°C ~+125°C
See Full Specification

$0.30500

SKU CA45A010K226TA
Original MPNCA45-A010K226TE3K2
Datasheet Data Sheet
Add to wishlist

Description

SMD Standard Tantalum Capacitors Industrial Grade MnO₂, CA45 Series, EIA code 3216-16 (1206), Case A, L3.20*W1.60*H1.60mm, Rated voltage 10 Vdc, Capacitance 22μF, Tolerance ±10%, ESR 3.2Ω Max. Operating Temp. Range -55°C ~+125°C

• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• Small volume, High Stability
• Good Frequency Characteristic

APPLICATION

• For Surface Mount Consumer Electronic Equipment
• Color TV sets, PC, Mobile Telephone sets Pickup camera Radar etc.

Specification

Series

CA45 Series Case A
Capacitance

22µF
Capacitance Tolerance

±10%
Rated Voltage

10V
Case Size

L3.20*W1.60*H1.60mm
Dissipation Factor

6.0% Tanδ Max.
ESR

3.2ohm Max.
Operating Temp. Range

-55°C ~+125°C
Mounting Type

Surface Mount, 2 pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

2000pcs/Reel, Quantity entered must be multiple of 2000
NCNR

Non-Cancelable/Non-Returnable
