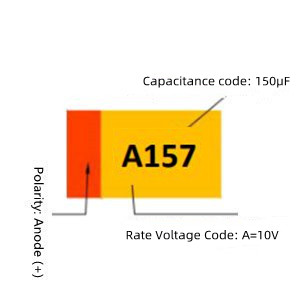

10V 150μF, ±10%, 0.9ohm Max. Case D CA45D series

SMD Standard Tantalum Capacitors Industrial Grade MnO₂, CA45 Series, EIA code 7343-28 (2917), Case D, L7.30*W4.30*H2.80mm, Rated voltage 10 Vdc, Capacitance 150μF, Tolerance ±10%, ESR 0.9Ω Max. Operating Temp. Range -55°C ~+125°C

Key Features:
  • Series: CA45 Series Case D
  • Capacitance: 150µF
  • Capacitance Tolerance: ±10%
  • Rated Voltage: 10V
  • Case Size: L7.30*W4.30*H2.80mm
  • ESR: 0.90ohm Max.
  • Operating Temp. Range: -55°C ~+125°C
See Full Specification

$2.45000

39971 in stock
SKU CA45D010K157TA
Original MPNCA45-D010K157TE900
Datasheet Data Sheet
Add to wishlist

Description

SMD Standard Tantalum Capacitors Industrial Grade MnO₂, CA45 Series, EIA code 7343-28 (2917), Case D, L7.30*W4.30*H2.80mm, Rated voltage 10 Vdc, Capacitance 150μF, Tolerance ±10%, ESR 0.9Ω Max. Operating Temp. Range -55°C ~+125°C

• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• Small volume, High Stability
• Good Frequency Characteristic

APPLICATION

• For Surface Mount Consumer Electronic Equipment
• Color TV sets, PC, Mobile Telephone sets Pickup camera Radar etc.

Specification

Series

CA45 Series Case D
Capacitance

150µF
Capacitance Tolerance

±10%
Rated Voltage

10V
Case Size

L7.30*W4.30*H2.80mm
Dissipation Factor

8.0% Tanδ Max.
ESR

0.90ohm Max.
Operating Temp. Range

-55°C ~+125°C
Mounting Type

Surface Mount, 2 pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

500pcs/Reel, Quantity entered must be multiple of 500
NCNR

Non-Cancelable/Non-Returnable
