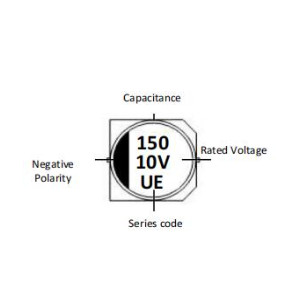

10V 150µF ±20% 0.85ohm 150mA 2K Hours UE Series

SMD Aluminum Electrolytic Capacitors, Low ESR/Impedance type, UE series, 2 pads Capacitance: 150µF, Tolerance ±20%, Voltage 10V, Case size: ØD6.3*L7.70mm, Impedance 0.85Ω, 2000 Hours, RC: 150 mA (at 105 ℃,100KHz), Operating Temp. Range -55°C ~+105°C

Key Features:
  • Series: UE
  • Capacitance: 150µF
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 10V
  • Ripple Current @+105°C, 100KHz: 150mA Max.
  • Leakage Current: 15(μA)max
  • Lifetime @105°C: 2000 Hours
  • Impedance @20℃,100KHz: 0.85ohm Max.
See Full Specification

$0.25500

Out of stock
SKU UE157M010HEJTA
Original MPNCAE157M1AHUEEG7TRC
Datasheet Data Sheet

Description

SMD Aluminum Electrolytic Capacitors, Low ESR/Impedance type, UE series, 2 pads Capacitance: 150µF, Tolerance ±20%, Voltage 10V, Case size: ØD6.3*L7.70mm, Impedance 0.85Ω, 2000 Hours, RC: 150 mA (at 105 ℃,100KHz), Operating Temp. Range -55°C ~+105°C

  • SMD Aluminum Electrolytic Capacitors
  • Wide Temperature
  • Low Impedance & ESR
  • Designed For SMD On PCB
  • Applicable To Automatic Mounting Machine
  • RoHS Complaint And Halogen Free

APPLICATION

  • High-density Patch Assembly Electronic Circuit, Power Supply, Lighting, Etc.

Specification

Series

UE
Capacitance

150µF
Capacitance Tolerance

±20%
Rated Voltage

10V
Case Size

Ø6.30*L7.70mm
Ripple Current @+105°C, 100KHz

150mA Max.
Leakage Current

15(μA)max
Lifetime @105°C

2000 Hours
Operating Temp. Range

-55°C ~+105°C
Dissipation Factor @+20°C, 120Hz Tanδ Max.

0.20 Tanδ Max.
Impedance @20℃,100KHz

0.85ohm Max.
Mounting Type

Surface Mount, 2 pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

1000pcs/Reel, Quantity entered must be multiple of 1000
NCNR

Non-Cancelable/Non-Returnable
