Name: 100V 27µF ±20% 1.3ohm 130mA 2K Hours UE Series
SKU: UE276M100HFKTA
Price: 0.36 USD
Availability: OutOfStock

Welcome to Aillen Capacitors !

Hello, Log In My Account

0 Shopping Cart $0.00000

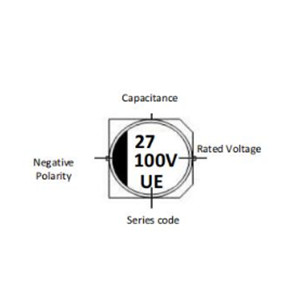

SMD Aluminum Electrolytic Capacitors Low ESR/Impedance type, UE series, 2 pads Capacitance: 27μF, Tolerance ±20%, Voltage 100V, Case size: Ø8.00*L10.2mm, Impedance 1.3Ω, 2000 Hours, Ripple Current: 130mA @ +105°C, 100KHz, Operating Temp. Range -55°C ~+105°C

Key Features:

Series: UE
Capacitance: 27µF
Capacitance Tolerance: ±20%
Rated Voltage: 100V
Ripple Current @+105°C, 100KHz: 130mA Max.
Lifetime @105°C: 2000 Hours
Leakage Current: 27 (μA)max
Impedance @20℃,100KHz: 1.3ohm Max.

See Full Specification

$0.35500

Out of stock

SKU	UE276M100HFKTA

Original MPN	CAE276M2AHUEFJ2TR
Datasheet	Data Sheet

Description
Specification

Description

Polar Aluminum Electrolytic Capacitor (Foil Type)
High stability and reliability
Lifetime 2000 Hours @ 105°C
Designed Capacitor’s Quality Meets IEC60384.
Applicable To Automatic Mounting Machine
Cross Competitors Parts and more.
RoHS Complaint And Halogen Free

APPLICATION

High-density Patch Assembly General Electronic Circuit Etc.

Specification

Series	UE
Capacitance	27µF
Capacitance Tolerance	±20%
Rated Voltage	100V
Case Size	Ø8.00*L10.2mm
Ripple Current @+105°C, 100KHz	130mA Max.
Lifetime @105°C	2000 Hours
Operating Temp. Range	-55°C ~+105°C
Dissipation Factor @+20°C, 120Hz Tanδ Max.	0.10 Tanδ Max.
Leakage Current	27 (μA)max
Impedance @20℃,100KHz	1.3ohm Max.
Mounting Type	Surface Mount, 2 pads
RoHS Status	RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8532.22.0020
ECCN	EAR99
Standard Package (MPQ)	500pcs/Reel, Quantity entered must be multiple of 500
NCNR	Non-Cancelable/Non-Returnable
