10V, 22μF, ±20%, 650mΩ Max. Polymer Case A

SMD Conductive Polymer Tantalum Capacitors, EIA code 3216-16CA55 Series, Case A, L3.20*W1.60*H1.60mm, Rated voltage 10 Vdc, Capacitance 22μF, Tolerance ±20%, ESR 650 mΩ Max., Operating Temp. Range -55°C ~+125°C.

Key Features:
  • Series: CA55 Series, Case A
  • Capacitance: 22uF
  • Capacitance Tolerance: ±20%

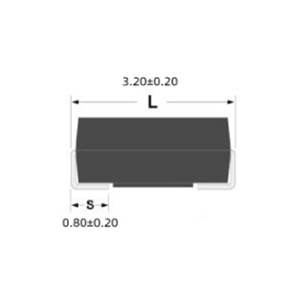

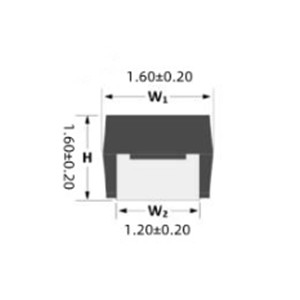

  • Case Size: L3.20*W1.60*H1.60mm
  • Rated Voltage: 10V
  • ESR: 650 mΩ Max
  • Operating Temperature Range: -55°C ~+125°C
See Full Specification

$0.36000

Out of stock
SKU CA55A010K226TA
Original MPNCA55-A010M226T
Datasheet Data Sheet

Description

SMD Conductive Polymer Tantalum Capacitors, EIA code 3216-16CA55 Series, Case A, L3.20*W1.60*H1.60mm, Rated voltage 10 Vdc, Capacitance 22μF, Tolerance ±20%, ESR 650 mΩ Max., Operating Temp. Range -55°C ~+125°C.

• RoHS III Compliant
• Wide Operating Temperature Range -55~+125℃
• Small volume, High Stability
• Low ESR Value
• Good Frequency Characteristic

APPLICATION

• For Surface Mount Consumer Electronic Equipment
• Color TV sets, PC, Mobile Telephone sets Pickup camera Radar etc



Specification

Series

CA55 Series, Case A
Capacitance

22uF
Capacitance Tolerance

±20%
Case Size

L3.20*W1.60*H1.60mm
Rated Voltage

10V
Dissipation Factor

8.0% tgδ Max.
ESR

650 mΩ Max
Operating Temperature Range

-55°C ~+125°C
Mounting Type

SMD type, 2 Pads
RoHS Status

RoHS III Compliant & Halogen Free
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8532.22.0020
ECCN

EAR99
Standard Package (MPQ)

2000pcs/reel, Quantity entered must be multiple of 2000
NCNR

Non-Cancelable/Non-Returnable
